CABLE WINCH WARN ZEON 8 12V 3,600 KG PULLING FORCE

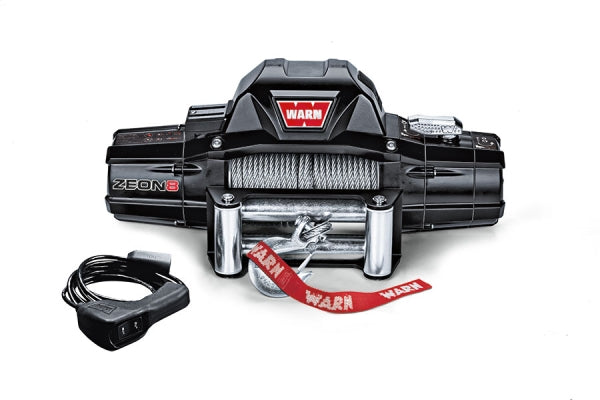

The ZEON 8 is a 12-volt electric winch that is mounted on the vehicle and has a pulling capacity of 3,600 kg. It is supplied with a roller guide and a 30m long steel cable.

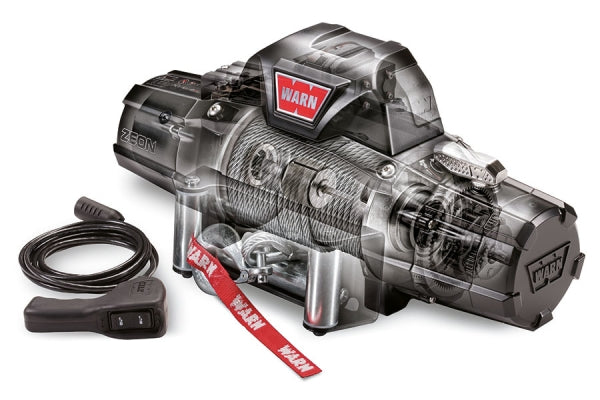

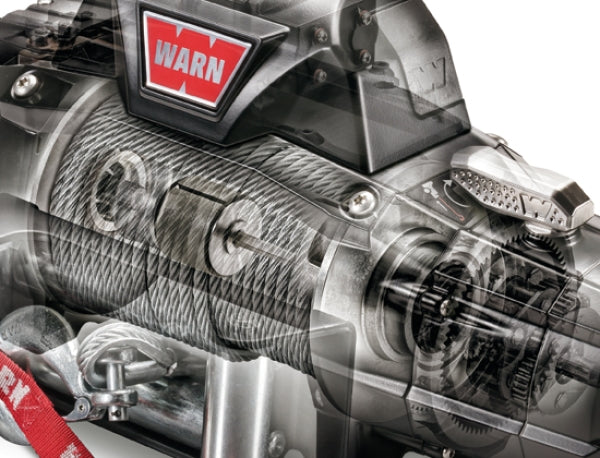

Don't let the good looks fool you. We've packed the ZEON 8 winch with all the performance features off-roaders need most. From a heat-dissipating brake to an incredibly smooth planetary gear system, this winch is ready for the trail. The 8,000-pound pulling capacity combined with a high line speed make this winch the perfect choice for Jeep and SUV trail rigs.

Characteristics

• pulling force: 3,600 kg
• Rope length: 30 mx 8 mm

Equipment:

• relay remote control with 3.7 m remote control cable
• roller cable windows
• cable freewheel clutch
• steel cable with safety hook
• German operating instructions

All WARN ZEON range winches are IP68 rated.

cable winch

• Model: WARN ZEON8
• Voltage: 12 volts
• pulling force: 3,630 kg
• Control: Contactor
• Radio remote control: no
• Cable remote control: yes, 3.7 m
• Gearbox: 3-stage planetary gearbox
• Translation: 162:1
• Brake: automatic
• Drum dimensions: 8 x 22.9 cm
• Weight: 42 kg
• Rope material: steel
• Rope length: 30 mx 8 mm
• Battery cable: 1.83 m
• Rope freewheel: manual
• Cable windows: roller cable windows
• min. cold cranking current battery: 650 CCA
• tow hook: yes
• Mounting screws: yes

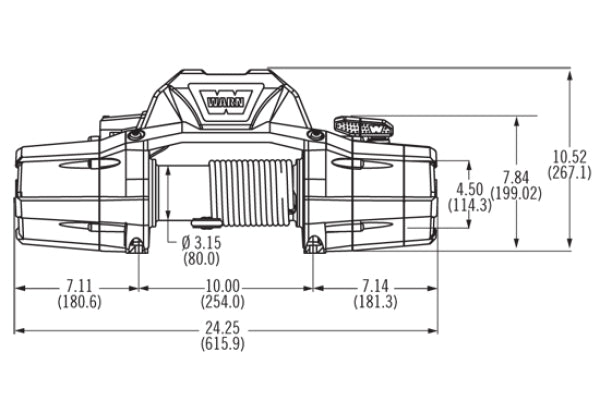

• Dimensions (LxDxH): 615.9 x 181.6 x 267.1 mm
• Hole pattern: 254 x 114.3 mm
