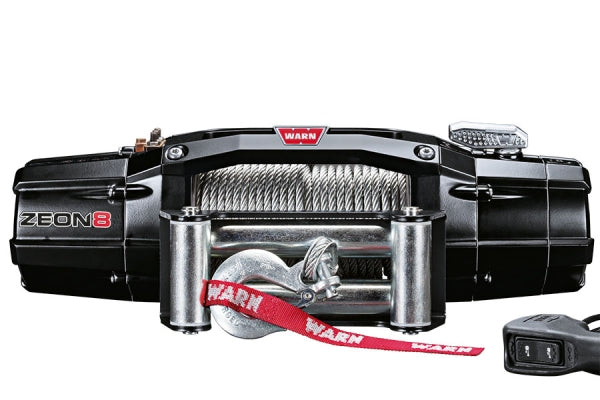

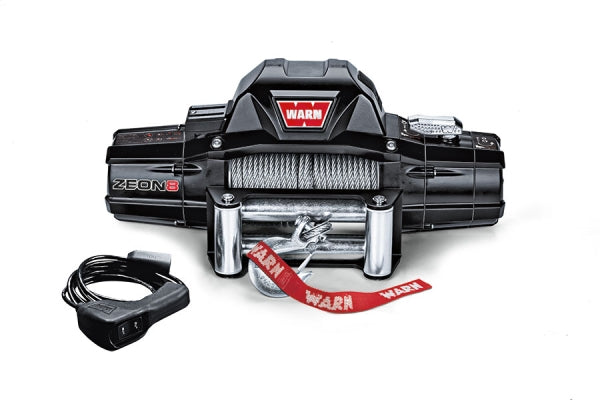

CABLE WINCH WARN ZEON 10 12V 4,500 KG PULLING FORCE

Choose your path to conquer the terrain. The ZEON 10 is rugged enough to handle a lot, with a look that's advanced, capable and strong. Sealing against dirt keeps out everything but the good times. Add to that an extremely durable cast aluminum body, satin black finish and you have a workhorse you can trust for years to come.

Characteristics

Rope length: 24 mx 9.5 mm

Equipment:

• relay remote control with 3.7 m remote control cable
• roller cable windows
• cable freewheel clutch
• steel cable with safety hook
• German operating instructions

All WARN ZEON range winches are IP68 rated.

cable winch

• Model: WARN ZEON10
• Voltage: 12 volts
• pulling force: 4,536 kg
• Control: Contactor
• Radio remote control: no
• Cable remote control: yes, 3.7 m

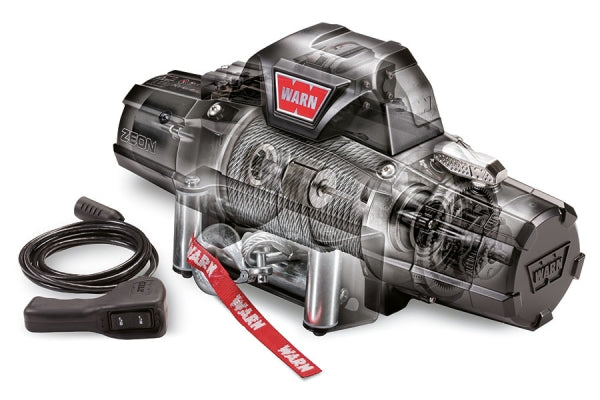

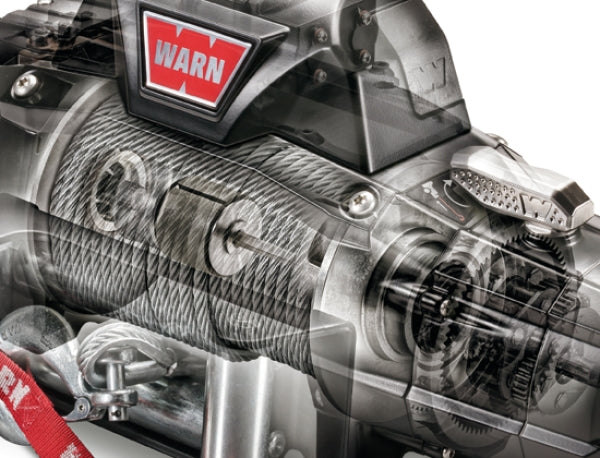

• Gearbox: 3-stage planetary gearbox
• Translation: 216:1
• Brake: automatic
• Drum dimensions: 8 x 22.9 cm
• Weight: 44 kg
• Rope material: steel
• Rope length: 24 mx 9.52 mm
• Battery cable: 1.83 m
• Rope freewheel: manual
• Cable windows: roller cable windows
• min. cold cranking current battery: 650 CCA
• tow hook: yes
• Mounting screws: yes

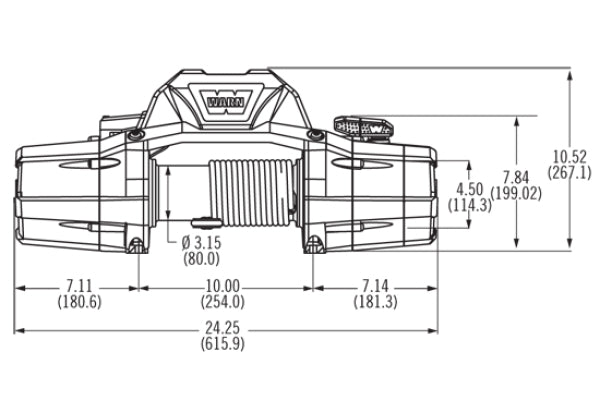

• Dimensions (LxDxH): 615.9 x 181.6 x 267.1 mm
• Hole pattern: 254 x 114.3 mm
