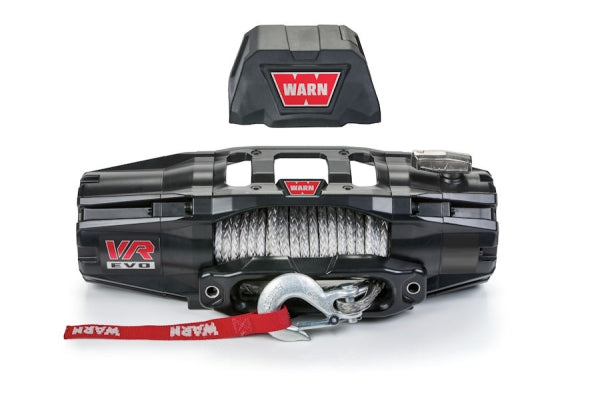

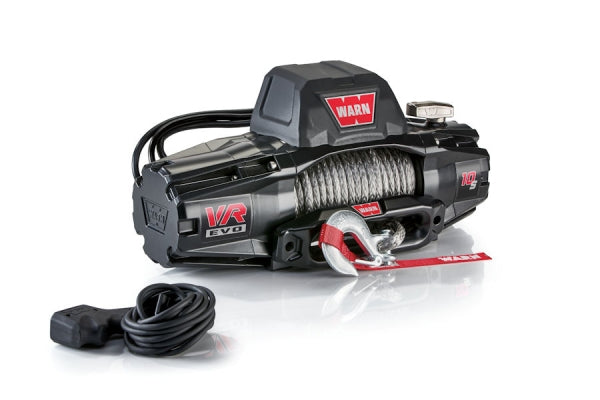

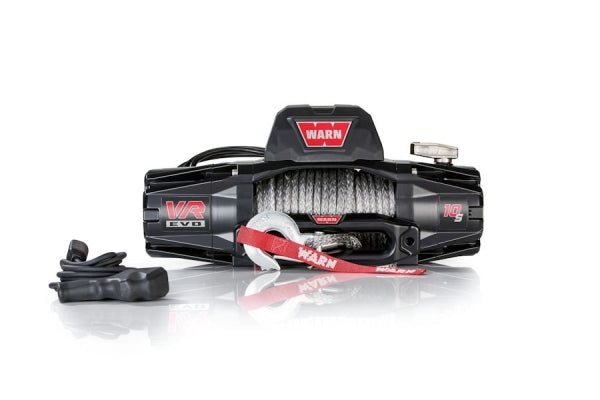

CABLE WINCH WARN VR EVO 10S 12V 4,536 KG PULLING FORCE, PLASTIC ROPE

The "VR EVO" cable winch from WARN replaces the "TABOR" series, which has been popular for years, and offers many innovations compared to the previous model.

Features:

• IP68 tested (cable winch only)
• Faster rope speed under load with lower ampere consumption *
• Higher tensile force per rope layer *
• 2 in 1 cable & radio remote control for full control during all work
• Centrally routed cable outlet in the middle of the contactor
• Reinforced connecting plate for greater stability
• Reliable contactor control
• Modern & functional design
  * compared to the Tabor series

cable winch

• Model: WARN VR EVO 10s
• Voltage: 12 volts
• pulling force: 4536 kg
• Control: Contactor
• Radio remote control: yes
• Cable remote control: yes, 3.7 m
• Gearbox: 3-stage planetary gearbox
• Translation: -
• Brake: spring auto.
• Drum dimensions: 6.4 x 22 cm
• Weight: 30.1 kg
• Rope material: plastic
• Rope length: 27.4 mx 9.5 mm
• Battery cable: 1.83 m
• Rope freewheel: manual
• Cable window: aluminum cable window
• min. cold start current battery: - CCA
• tow hook: yes
• Mounting screws: yes
• Dimensions (LxDxH): 534 x 160 x 256 mm
• Hole pattern: 254 x 114.3 mm
